PCBN
Our DURATEC PCBN grades are precisely engineered to meet the requirements
of manufacturers of highly loaded turning, milling, and grooving tools.
We offer high-quality PCBN grades (polycrystalline cubic boron nitride)
that have been specifically developed for demanding machining processes
in the hard machining of ferrous materials.
PCBN is one of the most high-performance cutting materials in modern manufacturing,
distinguished by an exceptional combination of extreme hardness, high thermal stability
and outstanding wear resistance. This makes PCBN ideally suited for machining hardened steels,
sintered steels, cast iron, powder metallurgy materials, and other difficult-to-machine materials.
Thanks to homogeneous grain structures, reliable bonding matrices,
and reproducible material properties, our grades provide consistently
high cutting-edge stability, long tool life, and maximum process reliability,
even at high temperatures and under extreme cutting conditions.
With many years of experience and technical expertise, we support tool manufacturers in realizing efficient, cost-effective, and highly precise hard machining processes in a reliable manner.
DURATEC supplies PCBN materials in application-optimized grades that are perfectly matched to specific removal rates, surface finish requirements, and tool geometries.

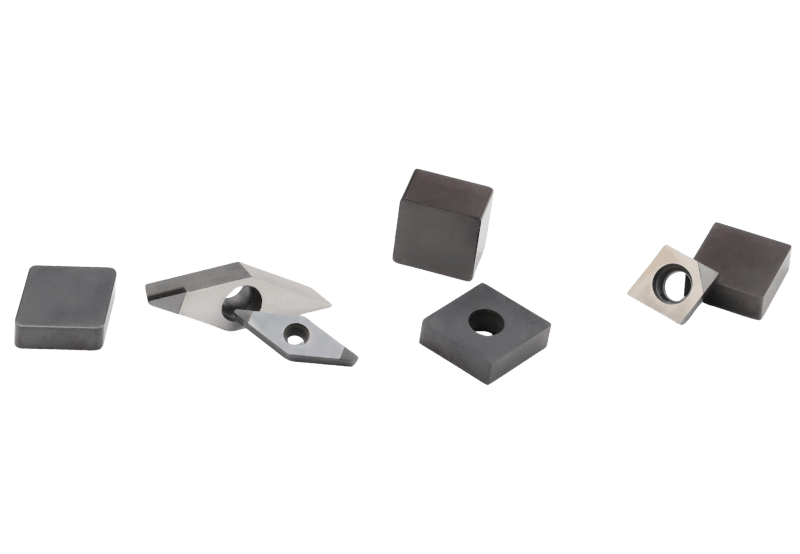

PCBN - CARBIDE SUPPORTED GRADES
| GRADE | SIZE (µm) | CBN-Vol. (%) | HARDNESS HV (GPa) | MACHINING MATERIALS | CUTTING METHODS | FEATURES |
| CBN150 | 1 | 45 | 27-31 | hardened steel | high speed / continous / finishing (turning) | excellent surface finishing (sub-micron) and chemical stability (crater wear) |
| CBN360 | 3 | 55 | 30-33 | hardened steel | high speed / continous to light interrupted | resistance to crater wear and mechanical wear |
| CBN370 | 2 | 65 | 31-33 | hardened steel, powdered metal | high speed / continous to medium interrupted | excellent balance between flank wear and crater wear |
| CBN380 | 2 | 65 | 32-34 | high alloy powdered metal, cast iron | high speed / continous to light interrupted | good chemical stability and high wear resistance |
| CBN400 | 4 | 70 | 34-36 | hardened steel | high speed / continous to medium interrupted | excellent fracture toughness and chipping resistance |
| CBN300 | 2 | 85 | 39-41 | grey cast Iron, sintered and co-based alloys | turning & milling / medium interrupted | superior impact resistance with a good chemical stability |

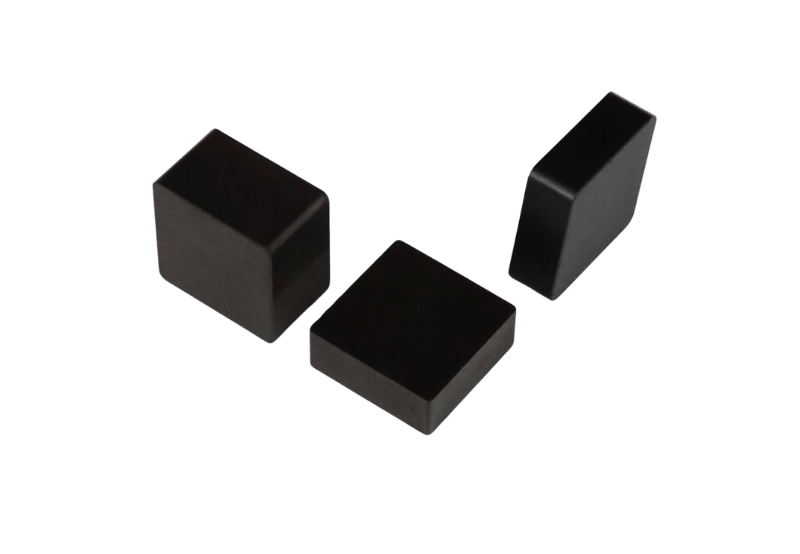

PCBN - SOLID GRADES
| GRADE | SIZE (µm) | CBN-Vol. (%) | HARDNESS HV (GPa) | MACHINING MATERIALS | CUTTING METHODS | FEATURES |
| SBN300 | 2 | 70 | 31-33 | hardened steel | medium to heavy interrupted | good balance between brater wear and flank wear resistance |
| SBN200 | 6 | 85 | 38-41 | wear resistant alloys, grey cast iron | high speed / interrupted | very high wear and impact resistance for roughing to finishing operations |
| SBN100 | 2 | 90 | 41-44 | grey cast irons, powdered metals | high speed / heavy machining | excellent strength and wear resistance |
| SBN600 | 35 | 90+ | 42-45 | hard cast irons, high manganese steels | high speed / continous to light interrupted | very high abrasion resistance and high impact strength |
| SBN800 | 10 | 90+ | 41-44 | grey cast irons | high speed / continous to heavy interrupted | excellent fracture toughness and chipping resistance |
| SBN1000 | 20 | 90+ | 44-48 | high chrome cast irons | high speed / heavy machining | extremely high abrasion resistance combined with a high impact strength |
